Aluminum Panels

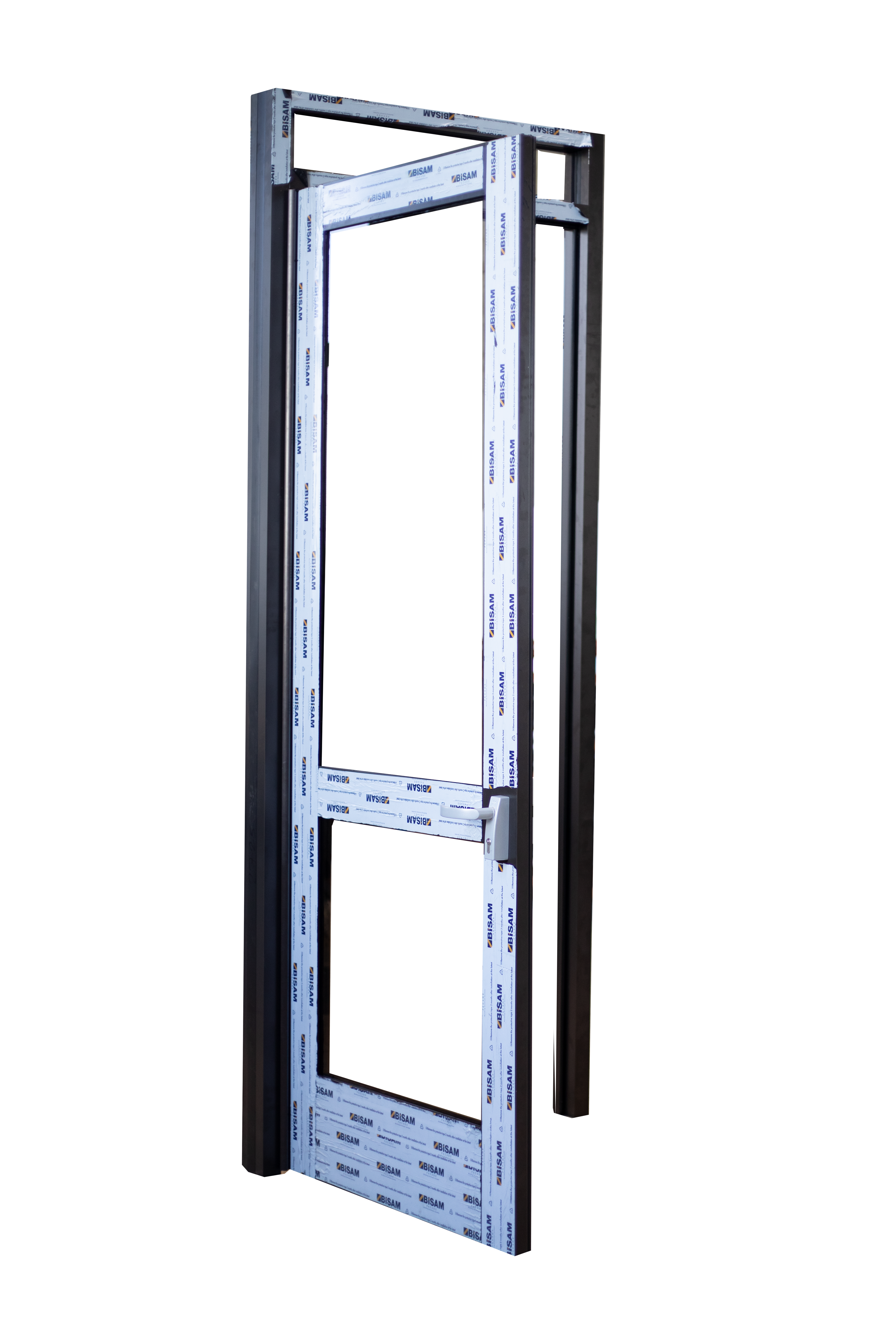

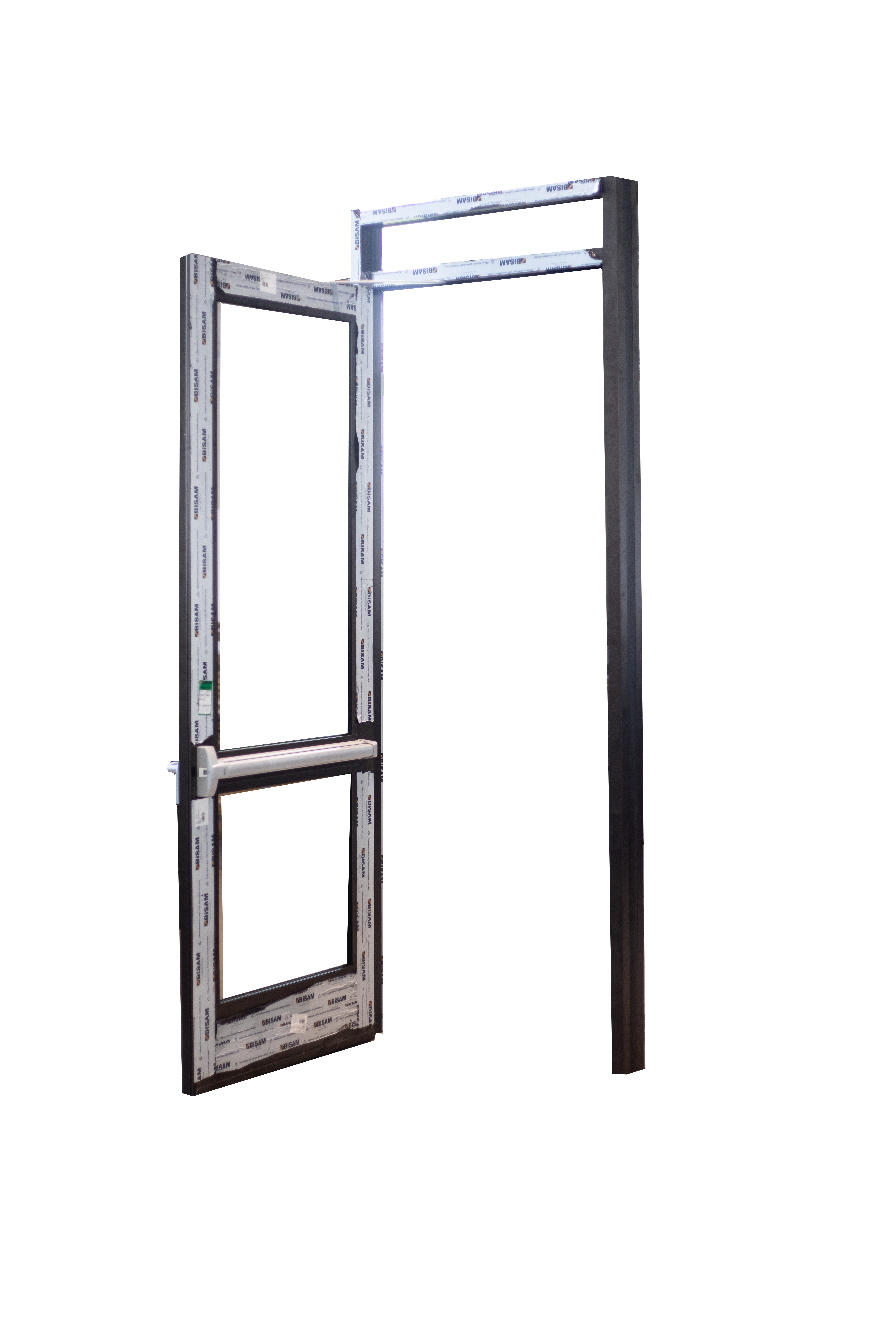

BISAM FACADE Unitized Aluminum Door Panel
Description
With its wide range scope of design applications BISAM FACADE Store Front Systems offers following and further features: 3-1/8'' frame width, 6’’ to 1/2'' frame depth, 1/16'' wall thickness, Thermally broken aluminum profiles, Air, water and dust sealing gaskets made of EPDM…
Get a Quote
Product Code:
334.362T.100.25G.G67
Stock:
100 in stock / In Stock
Standard Features
3-1/8'' frame width
6'' to 1/2'' frame depth
1/16'' wall thickness
Thermally broken aluminum profiles
Air, water and dust sealing gaskets made of EPDM
Powder coating with all standard RAL colors and various anodized colors
Qualicoat & Qualanod certified surface treatment applications.
1'' Insulated glass unit.
Concealed vents with multi-point locking for openings
Euro-groove design for hardware versatility
Stainless steel and aluminum projected hardware
Hardware options to limit vent access to custodial use
Optional Features
Powder coated dual finish (two-tone color) option
High insulated profile system for better energy efficiency
Up to 2' Insulated glass with low-e or solar low-e options
Warmedge spacer and triple IGU to maximize energy efficiency
Sound insulated profile system for superior OITC ratings Bird friendly glazing Silicone gaskets Allowed the integration of BF64 or BF74 window systems opening
Motorized concealed opening options
Performance Values
Air infiltration (<0.06 cfm/ft2 @ 6.24 psf 15 psf)
Water penetration (Static) (15 psf)
Water penetration (Dynamic) (15 psf)
Wind resistance design (40 psf)
Wind resistance overload (60 psf)
U-Value (0.27- 0.43 Btu/(h.ft2.°F))
Performance Test Standarts
Air infiltration (ASTM E283)
Water penetration (ASTM E331)
Structural - Uniform Wind Load (ASTM E330)
Thermal transmittance U-Factor (NFRC 100, 102, 500; AAMA 1503)
Solar Heat Gain Cefficient (SHGC) (NFRC 200)
Visible Sound Transmission (STC, OITC) (ASTM E90)
3-1/8'' frame width
6'' to 1/2'' frame depth
1/16'' wall thickness
Thermally broken aluminum profiles
Air, water and dust sealing gaskets made of EPDM
Powder coating with all standard RAL colors and various anodized colors
Qualicoat & Qualanod certified surface treatment applications.
1'' Insulated glass unit.
Concealed vents with multi-point locking for openings
Euro-groove design for hardware versatility
Stainless steel and aluminum projected hardware
Hardware options to limit vent access to custodial use
Optional Features
Powder coated dual finish (two-tone color) option
High insulated profile system for better energy efficiency
Up to 2' Insulated glass with low-e or solar low-e options
Warmedge spacer and triple IGU to maximize energy efficiency
Sound insulated profile system for superior OITC ratings Bird friendly glazing Silicone gaskets Allowed the integration of BF64 or BF74 window systems opening
Motorized concealed opening options
Performance Values
Air infiltration (<0.06 cfm/ft2 @ 6.24 psf 15 psf)
Water penetration (Static) (15 psf)
Water penetration (Dynamic) (15 psf)
Wind resistance design (40 psf)
Wind resistance overload (60 psf)
U-Value (0.27- 0.43 Btu/(h.ft2.°F))
Performance Test Standarts
Air infiltration (ASTM E283)
Water penetration (ASTM E331)
Structural - Uniform Wind Load (ASTM E330)
Thermal transmittance U-Factor (NFRC 100, 102, 500; AAMA 1503)
Solar Heat Gain Cefficient (SHGC) (NFRC 200)
Visible Sound Transmission (STC, OITC) (ASTM E90)
